PRECISION ENCLOSURE SYSTEMS
High-Performance PRECISION ENCLOSURE SYSTEMS

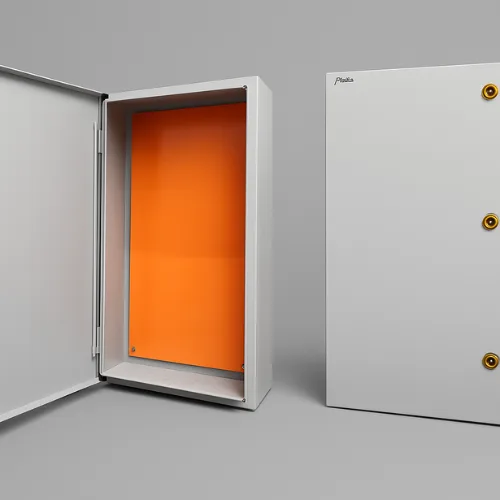

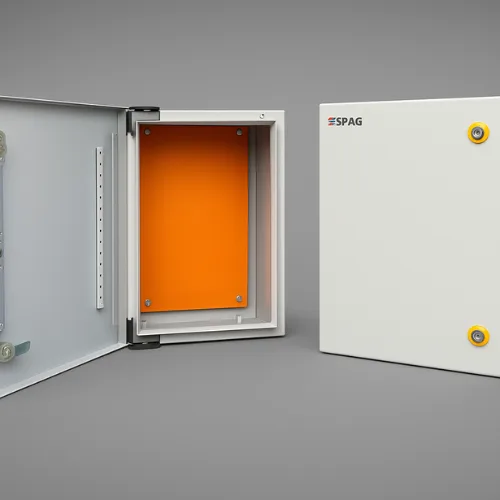

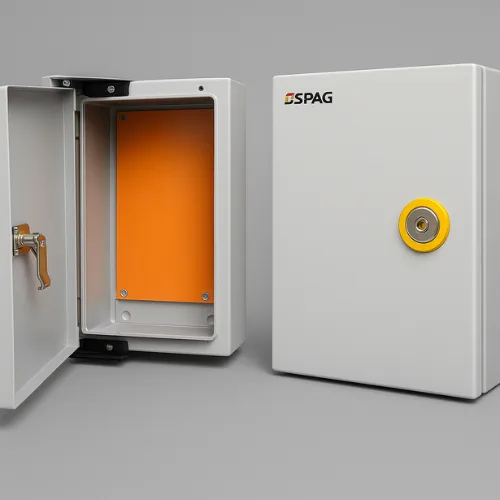

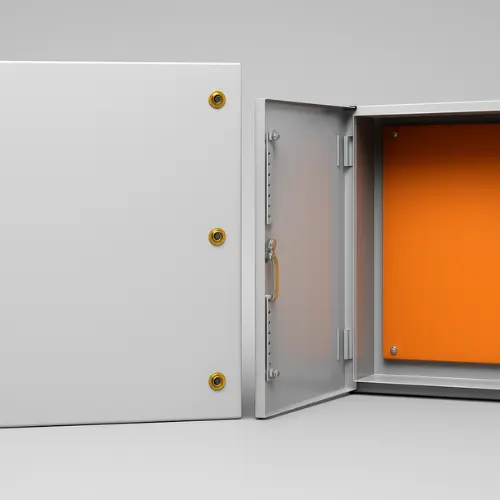

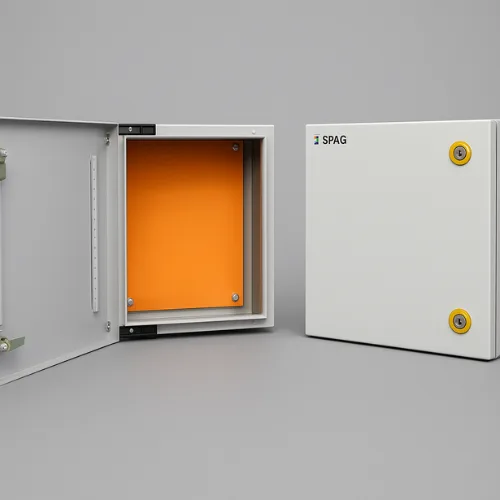

PRECISION ENCLOSURE SYSTEMS Our Electrical Enclosure Boxes are designed to deliver reliable protection for electrical circuits and components in residential, commercial, and industrial applications. Manufactured from premium CRCA sheet metal and finished with a high-quality powder coating, these enclosures provide long-lasting durability, superior functionality, and excellent resistance to corrosion, ensuring safety and performance in every environment.
TECHNICAL SPECIFICATIONS
- Strong Build: Fabricated from premium CRCA steel for high
strength and durability. - Corrosion-Resistant Finish: Long-lasting powder coating
(RAL 7035 or custom colors). - Secure Protection: Shields internal components from dust,
moisture, and accidental contact. - Ease of Installation: Pre-punched knockouts and
wall/surface mounting options - Customization Available:Sizes, colors, and sizes can be
tailored as per requirement. - Compliance: Meets IS 8623 / IEC 61439 standards for safety
and reliability
| SR. NO. | ITEM CODE | MODEL NUMBER | BOX SIZE – INCHES W x H x D |
BODY DIMENSIONS IN MM | NO. OF GLAND PLATES | DOOR LOCKS QTY. | WEIGHT KGS | |||
|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | THK | |||||||
| 1 | SPAG2001 | MS080806 | 8″x8″x6″ | 200 | 200 | 150 | 1.20 | 1 | 1 | 2.95 |
| 2 | SPAG2002 | MS081206 | 8″x12″x6″ | 200 | 300 | 150 | 1.20 | 1 | 1 | 3.70 |
| 3 | SPAG2004 | MS121206 | 12″x12″x6″ | 300 | 300 | 150 | 1.20 | 1 | 1 | 4.80 |
| 4 | SPAG2005 | MS121208 | 12″x12″x8″ | 300 | 300 | 200 | 1.20 | 1 | 1 | 5.20 |
| 5 | SPAG2006 | MS121606 | 12″x16″x6″ | 300 | 400 | 150 | 1.20 | 1 | 2 | 6.00 |
| 6 | SPAG2007 | MS121608 | 12″x16″x8″ | 300 | 400 | 200 | 1.20 | 1 | 2 | 7.00 |
| 7 | SPAG2008 | MS161206 | 16″x12″x6″ | 400 | 300 | 150 | 1.20 | 1 | 2 | 6.00 |
| 8 | SPAG2009 | MS161208 | 16″x12″x8″ | 400 | 300 | 200 | 1.20 | 1 | 2 | 6.45 |
| 9 | SPAG2010 | MS161606 | 16″x16″x6″ | 400 | 400 | 150 | 1.20 | 1 | 2 | 7.40 |
| 10 | SPAG2011 | MS161608 | 16″x16″x8″ | 400 | 400 | 200 | 1.20 | 1 | 2 | 8.35 |
| 11 | SPAG2014 | MS202008 | 20″x20″x8″ | 500 | 500 | 200 | 1.20 | 1 | 2 | 11.70 |
| 12 | SPAG2015 | MS162408 | 16″x24″x8″ | 400 | 600 | 200 | 1.50 | 2 | 2 | 13.50 |
| 13 | SPAG2016 | MS202408 | 20″x24″x8″ | 500 | 600 | 200 | 1.50 | 2 | 2 | 15.85 |
| 14 | SPAG2019 | MS241608 | 24″x16″x8″ | 600 | 400 | 200 | 1.50 | 2 | 2 | 13.00 |
| 15 | SPAG2020 | MS241612 | 24″x16″x12″ | 600 | 400 | 300 | 1.50 | 2 | 2 | 16.30 |
| 16 | SPAG2022 | MS242408 | 24″x24″x8″ | 600 | 600 | 200 | 1.50 | 2 | 2 | 19.30 |
| 17 | SPAG2023 | MS242412 | 24″x24″x12″ | 600 | 600 | 300 | 1.50 | 2 | 2 | 22.40 |
| 18 | SPAG2025 | MS243208 | 24″x32″x8″ | 600 | 800 | 200 | 1.50 | 2 | 2 | 24.85 |
| 19 | SPAG2026 | MS243212 | 24″x32″x12″ | 600 | 800 | 300 | 1.50 | 2 | 2 | 28.05 |
| 20 | SPAG2027 | MS244008 | 24″x40″x8″ | 600 | 1000 | 200 | 1.50 | 2 | 3 | 30.35 |
| 21 | SPAG2028 | MS244012 | 24″x40″x12″ | 600 | 1000 | 300 | 1.50 | 2 | 3 | 33.90 |
| 22 | SPAG2029 | MS323212 | 32″x32″x12″ | 800 | 800 | 300 | 1.50 | 2 | 2 | 35.45 |
| 23 | SPAG2030 | MS324008 | 32″x40″x8″ | 800 | 1000 | 200 | 1.50 | 2 | 3 | 38.60 |
| 24 | SPAG2031 | MS324010 | 32″x40″x10″ | 800 | 1000 | 250 | 1.50 | 2 | 3 | 40.90 |
| 25 | SPAG2032 | MS324012 | 32″x40″x12″ | 800 | 1000 | 300 | 1.50 | 3 | 3 | 42.45 |
